Exercise 6.4: Exploring 74181 ALU IC

So far, we have built arithmetic hardware by wiring together adders, registers, and multiplexers.
However, in many real systems, all of these arithmetic and logical functions are bundled into a single chip called an Arithmetic Logic Unit (ALU).

One classic example of such a chip is the 74181 ALU IC.
This device was widely used in early computers and can perform a variety of arithmetic and logical operations depending on how its control pins are configured.

Just like before, instead of directly giving you every connection, we will practice learning from a datasheet.

Take a look at the 74181’s datasheet

At first glance, it may seem overwhelming, but for building basic circuits, the first few pages usually contain everything we need.
For now, we will focus on two major parts of the datasheet.

1) Functionality Overview

Near the beginning of the datasheet, you should find a descriptive section explaining what the ALU does in words.
This section typically tells you:

• What kinds of operations the chip can perform
• How many bits wide the inputs are
• What control signals are used to select functions

Reading this paragraph carefully gives you a high-level understanding of how the ALU behaves before you wire anything.

2) Pinout

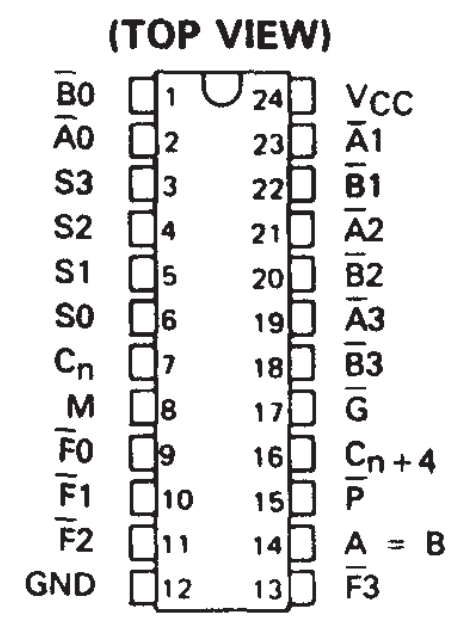

Further down on the first few pages, you should find a pinout diagram showing the physical layout of the chip and labeling each pin with its function.
Look for a rectangular drawing of the IC with numbered pins and names beside them.

Using the pinout diagram in the 74181’s datasheet, what signal does pin 19 provide?

-- A2 input F2 output Carry out Mode select

Loading...

Now that we know how to locate the 74181’s pinout, let’s broadly categorize its pins.

Input Pins: These pins allow us to provide data and control information to the ALU so it can perform operations.

VCC (pin 24): Positive supply voltage, connect to 5V.
GND (pin 12): Ground reference.
A0–A3 (pins 2, 23, 21, 19): First 4-bit operand inputs.
B0–B3 (pins 1, 22, 20, 18): Second 4-bit operand inputs.
S0–S3 (pins 9–12 depending on package): Function select pins that choose the operation.
M (pin 4): Mode select pin — arithmetic or logic mode.
Cin (pin 7): Carry-in for arithmetic operations and cascading devices.

Output Pins: These pins provide the results of the selected operation and status information.

F0–F3 (pins 5, 6, 8, 10): 4-bit result outputs.
Cout (pin 15): Carry-out from arithmetic operations.
P and G (pins 16 and 17): Propagate and generate outputs for fast carry logic.
A = B (pin 14): Indicates when both inputs are equal.

Which part in our own design of ALU corresponds to the Function select pins in the above described IC?

-- 2's complement generator input Select pins of the Multiplexer Output of the Adder module 4-bit input of the adder

Loading...

3) Functions and Select-Line Patterns in the 74181

If you continue reading the 74181’s datasheet, you will find a large table that lists all of the arithmetic and logic functions the chip can perform, along with the exact patterns required on the Mode pin (M) and the four select pins S0–S3.

This table below has some of the functions summarized from the datasheet

In the datasheet, this table is shown alongside the internal logic symbols for the chip, clearly linking each combination of control pins to a mathematical or logical equation

Notice how:

• When M = 0, the chip operates in arithmetic mode, producing sums, differences, increments, and decrements.
• When M = 1, the chip switches to logic mode, producing bit-wise Boolean functions like AND, OR, XOR, and complements.
• The four select pins S0–S3 dramatically expand what the chip can do—five control inputs together allow dozens of unique operations.

Note:
Because the 74181 supports such a wide range of functions, it requires many more select pins than the simple add/subtract circuit you built earlier.
In your own design, a single MUX select line chose between two operations.
Inside the 74181, a much larger network of multiplexers and control logic is hidden within the IC, allowing dozens of internal paths to be chosen based on S0–S3 and M.

As you study this table, try to mentally map it onto the blocks you already understand:

• The adder core corresponds to the ripple-carry adders you wired before.
• The increment and subtract modes rely on internal complementing and carry-in paths, just like your 2’s-complement generator plus adder.
• The logic functions come from networks of gates feeding into multiplexers before the final output stage.

Thinking about the chip in this way will help you treat the 74181 not as a mysterious black box, but as a dense packaging of the same fundamental components you have been building throughout the course.

4) Understanding ALU with circuit

Since, in the previous section, we already designed an Arithmetic Unit of our own, let's verify the functionality by comparing the outputs of the ALU IC to our circuit.

Components you'll need:

Step-by-step design:

1.

Note

5) Don’t Care Conditions in the ALU

In large digital ICs like the 74181 ALU, you will sometimes find that certain input pins do not affect the output for a particular operation—these are called don’t care conditions. A don’t care input is one whose value (0 or 1) makes no difference to the final result in that specific mode. For example, in an OR gate, if one input is already HIGH, the output is forced HIGH no matter what the second input is, so that second input becomes a don’t care.

Example 1: OR Gate with a Don’t Care Input

The same idea appears inside complex chips: when the 74181 is set to perform some logic functions, not every data input is actually used in producing the output. Using the datasheet’s function table, choose the NOT A logic operation and notice that the B inputs (pins 1, 18, 20, and 22) are not involved in that result—making them effective don’t cares.

Example 2: 74181 ALU in NOT A Mode

Note: The symbol X is commonly used in digital design tables to indicate a don’t care input—meaning the signal may be 0 or 1 without changing the output.

Activity

Configure the ALU for NOT A, then toggle B0 (pin 1) between 0 and 1 while keeping everything else the same, and verify that the output does not change.

Steps:

1.

Note

Final Submission

Upload a short video (20 seconds) showing your circuit with the ALU IC working. Demonstrate add and subtract operations done in this section clearly using different input values on the switches.

Select File No file selected

Loading...

Next,, we will get to the final part of our course where we will design a Signed Calculator.
